ANNKE FCD800 8MP Panoramic Dual Lens Outdoor PoE Camera AI
ANNKE FCD800 8MP Panoramic Dual Lens Outdoor PoE Camera AI
Couldn't load pickup availability

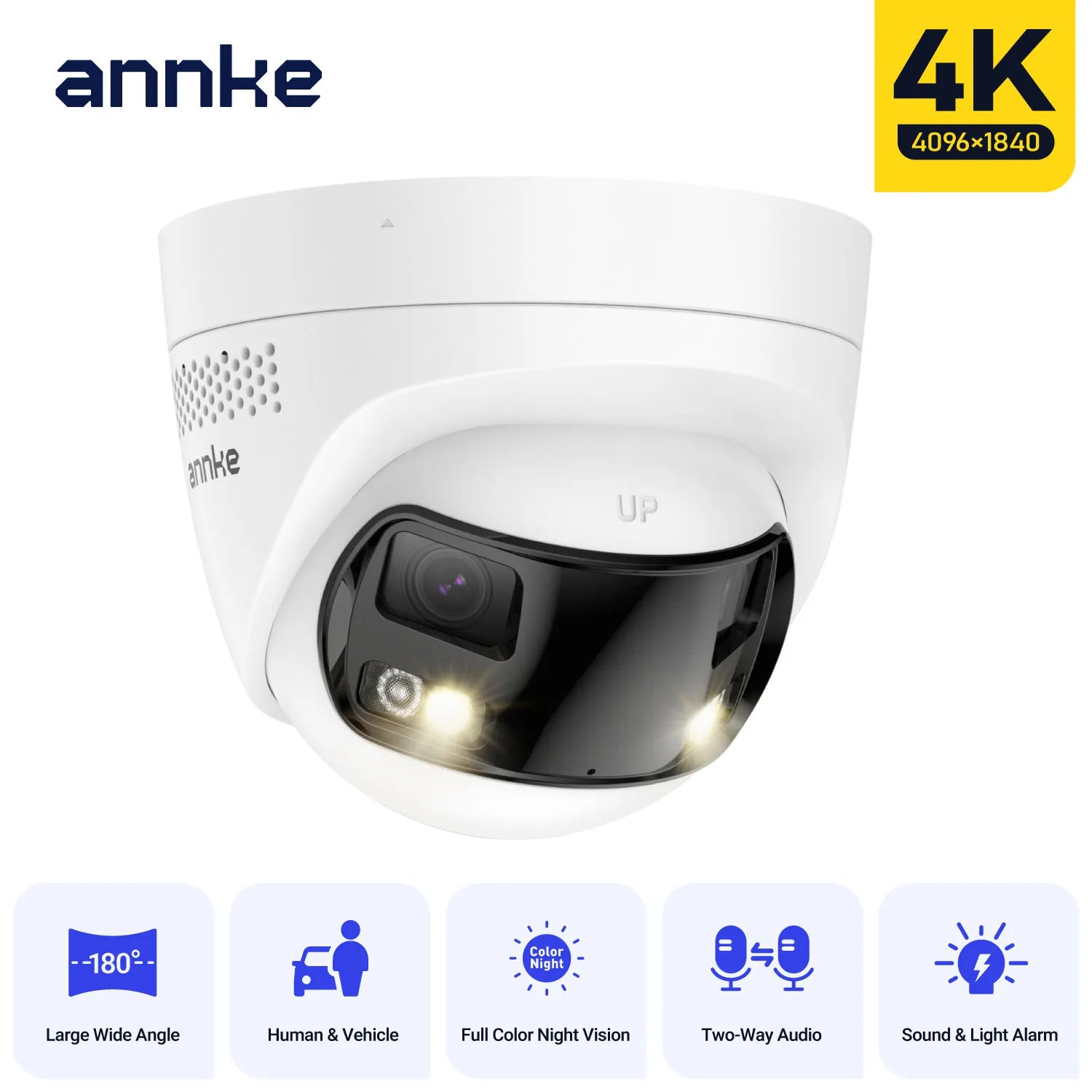

Experience panoramic security with the ANNKE FCD800 8MP dual-lens outdoor PoE camera, delivering edge-to-edge clarity in a single 180° feed.
- Dual 2mm lenses with 1/2.4" BSI sensors provide a seamless 180° panorama at up to 4096 x 1860 (20fps), keeping details sharp when you need to zoom in.
- AI-driven security with human and vehicle detection, motion alerts to a local alarm, and 120 dB WDR with an active strobe light, plus built-in microphone for real-time two-way audio.
- Smart lighting and efficiency: white light and IR illumination up to 30 m, plus H.265+/H.265 compression and support for up to 512 GB TF storage.
- Rugged outdoor performance: IP67-rated weatherproof housing, PoE-enabled with a 12 V DC input, and flexible mounting for wall or pendant installation; supports Android and iOS apps.

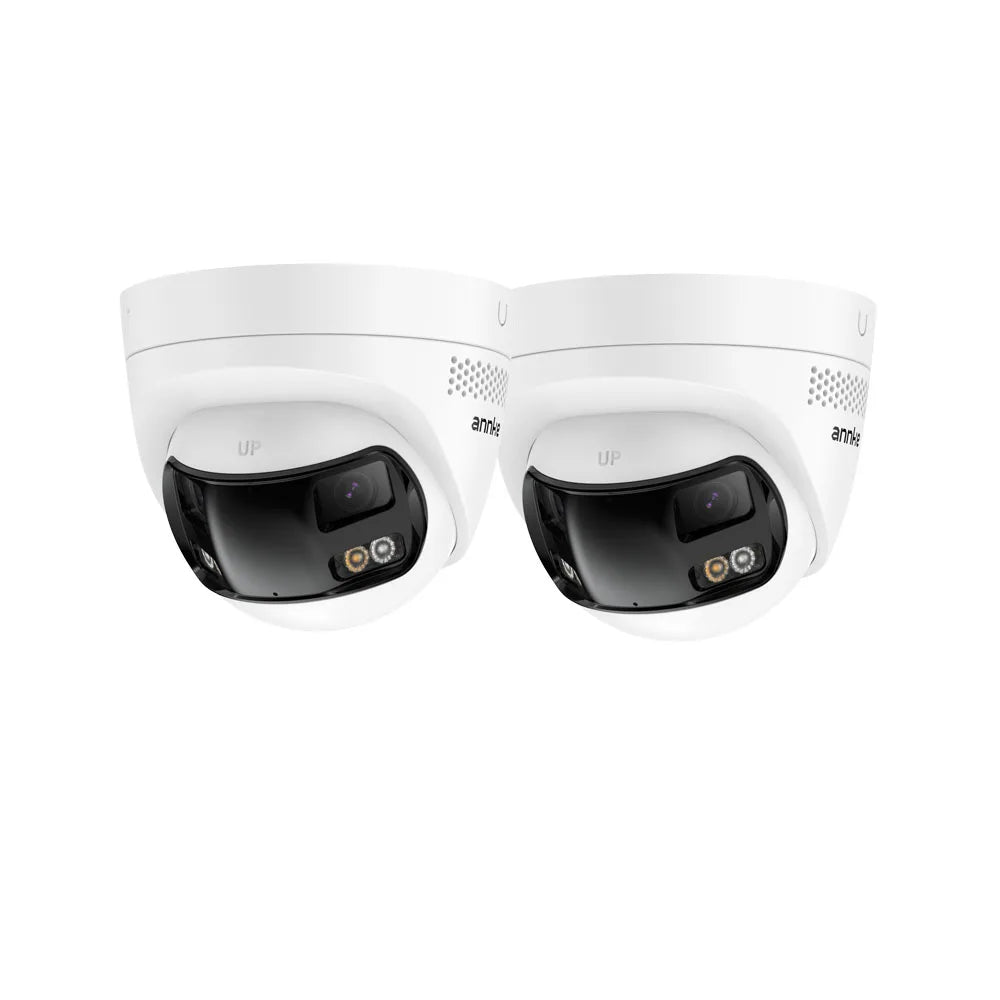

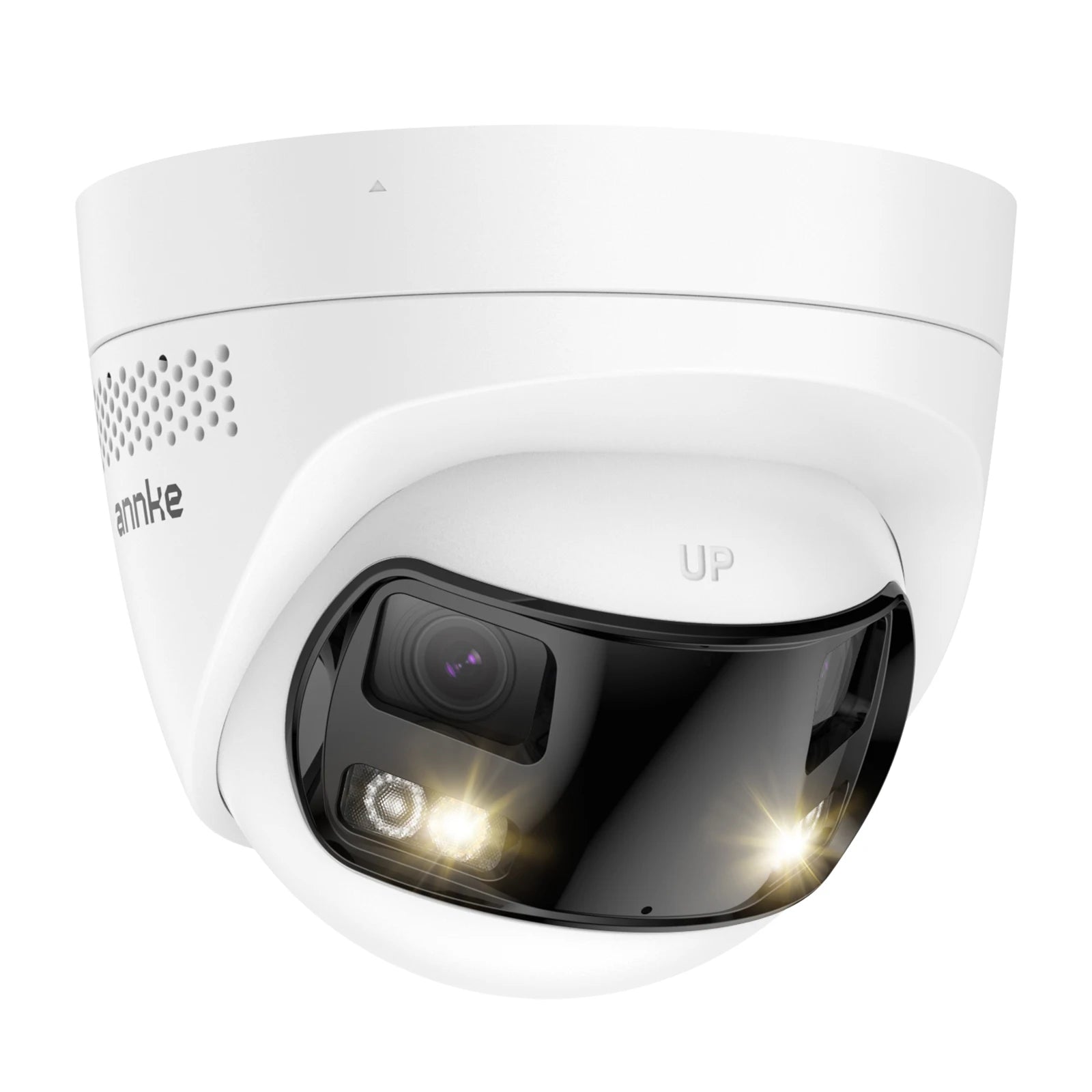

Model Number |
I91ET |
|
IP Camera | ||
Camera |
Image sensor |
2×1/2.4" Progressive Scan CMOS |
Max resolution |
4096 x 1860 |
|
Main Stream |
50 Hz: 20 fps (4096 x 1860) |
|
Sub Stream |
50 Hz：20 fps（1200 × 536, 960 × 432） |
|
Video compression |
Main Stream: H.265+/H.265/H.264+/H.264 |
|
Video Bit Rate |
32 Kbps to 16 Mbps |
|
Built-in Microphone |
Built-in Microphone, record with audio |
|
Audio Compression |
G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
|
Built-in Speaker |
Yes, max. sound pressure: 10 cm: 97 dB |
|
Lens |
Dual lens: 2 mm |
|
Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON) |
|
Angle of View |
Horizontal FOV: 180°, Vertical FOV: 77° |
|
Supplement Light Type |
Smart light, white light, IR light |
|
Supplement Light Range |
White light up to 30 m, IR light up to 30m |
|
Motion detection 2.0 |
Supoort, include human & vehicle detection |
|
Image Parameters Switch |
Yes |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Wide Dynamic Range |
120dB WDR |
|
Network Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPV4, IPV6, IGMP, UDP, QoS, FTP, SMTP |
|
API |
Support Open Network Video Interface protocol, version 19.12 |
|
Basic Event |
Motion detection (support human and vehicle detection), video tampering, exception detection |
|
Audio Alarm |
Support(Parameters adjustable,support custom audio, can be triggered from APP) |
|
Flashing Alarm |
White light, frequency adjustable, can be triggered from APP |
|
Region of Interest (ROI) |
1 fixed region for main stream |
|
Privacy Mask |
4 programmable polygon privacy masks |
|
General Function |
Rotate, remote access, IP Address Filter |
|
General |
Housing |
Metal&Plastic, white color |
Operating Power |
PoE (802.3af)，max 11.5W, |
|
Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
Storage |
Built-in micro SD/SDHC/SDXC slot, up to 512 GB |
|
Hardware Reset |
Yes |
|
Operating Temperature |
-22 °F – 140 °F /-30 °C – 60 °C |
|
Indoor/Outdoor |
Indoor/Outdoor |
|
Weatherproof Rating |
IP67 |
|
Dimension (L x W x H) |
Ø 130.1 mm × 109.1 mm (Ø 5.1" × 4.3") |
|
Weight |
Approx. 586 g (1.3 lb.) |
|

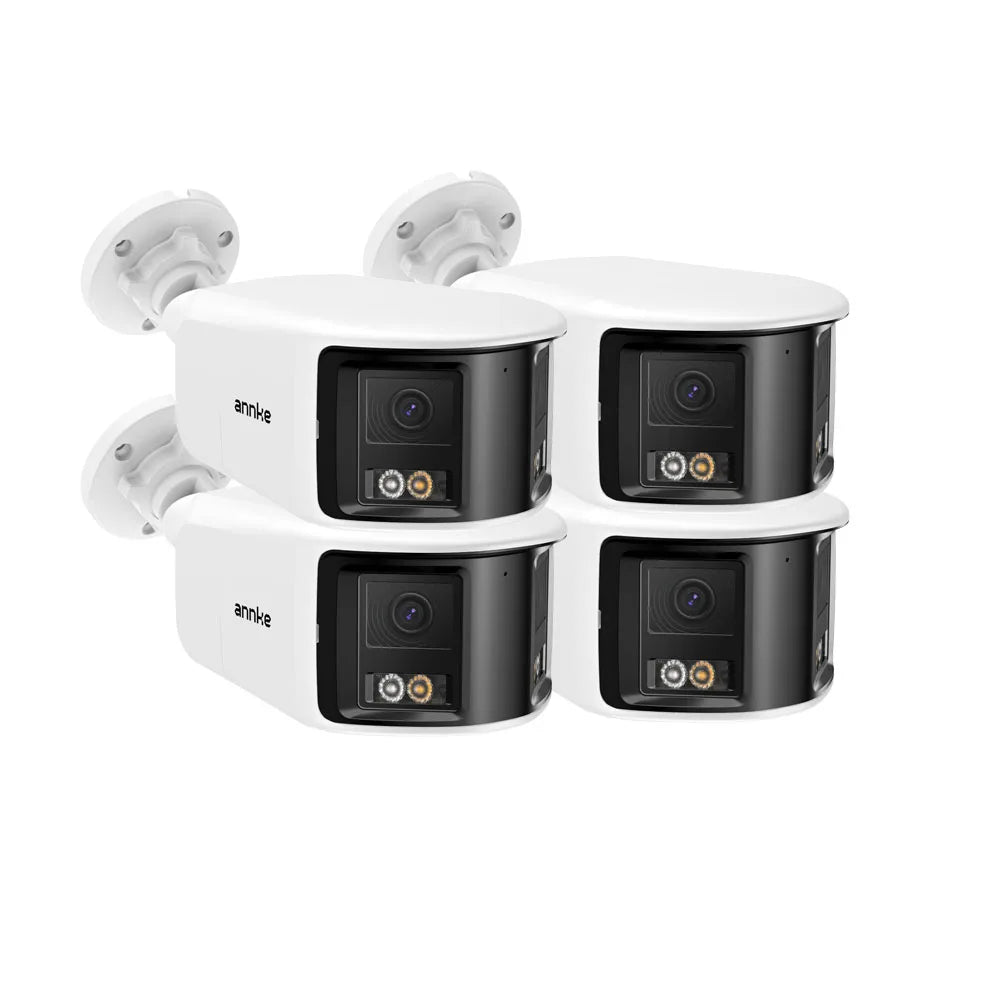

Model Number |
I91EV |
|
IP Camera | ||
Camera |
Image sensor |
2×1/2.4" Progressive Scan CMOS |
Max resolution |
4096 x 1860 |
|
Main Stream |
50 Hz: 20 fps (4096 x 1860) |
|
Sub Stream |
50 Hz：20 fps（1200 × 536, 960 × 432） |
|
Video compression |
Main Stream: H.265+/H.265/H.264+/H.264 |
|
Video Bit Rate |
32 Kbps to 16 Mbps |
|
Built-in Microphone |
Built-in Microphone, record with audio |
|
Audio Compression |
G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
|
Built-in Speaker |
Yes, max. sound pressure: 10 cm: 97 dB |
|
Lens |
Dual lens: 2 mm |
|
Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON) |
|
Angle of View |
Horizontal FOV: 180°, Vertical FOV: 77° |
|
Supplement Light Type |
Smart light, white light, IR light |
|
Supplement Light Range |
White light up to 30 m, IR light up to 30m |
|
Motion detection 2.0 |
Supoort, include human & vehicle detection |
|
Image Parameters Switch |
Yes |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Wide Dynamic Range |
120dB WDR |
|
Network Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPV4, IPV6, IGMP, UDP, QoS, FTP, SMTP |
|
API |
Support Open Network Video Interface protocol, version 19.12 |
|
Basic Event |
Motion detection (support human and vehicle detection), video tampering, exception detection |
|
Audio Alarm |
Support(Parameters adjustable,support custom audio, can be triggered from APP) |
|
Flashing Alarm |
White light, frequency adjustable, can be triggered from APP |
|
Region of Interest (ROI) |
1 fixed region for main stream |
|
Privacy Mask |
4 programmable polygon privacy masks |
|
General Function |
Rotate, remote access, IP Address Filter |
|
General |
Housing |
Metal&Plastic, white color |
Operating Power |
PoE (802.3af)，max 11.5W, |
|
Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
Storage |
Built-in micro SD/SDHC/SDXC slot, up to 512 GB |
|
Hardware Reset |
Yes |
|
Operating Temperature |
-22 °F – 140 °F /-30 °C – 60 °C |
|
Indoor/Outdoor |
Indoor/Outdoor |
|
Weatherproof Rating |
IP67 |
|
Dimension (L x W x H) |
103.6 mm × 76 mm × 234.5 mm (4.1" × 3.0" × 9.2") |
|
Weight |
Approx. 560 g (1.2 lb.) |
|
